Productdetails:
|
| Naam: | Het Staalflens van de nikkellegering | Materiaal: | B564 N08800 |
|---|---|---|---|
| Kleur: | Zilver | Druk: | 300# |
| Norm: | ASME B16.5 | ||
| Hoog licht: | Nickel Alloy Steel Pipe Fittings Flange,Thread Nickel Alloy Steel Flange,6" Welding Neck Plate Flange |
||

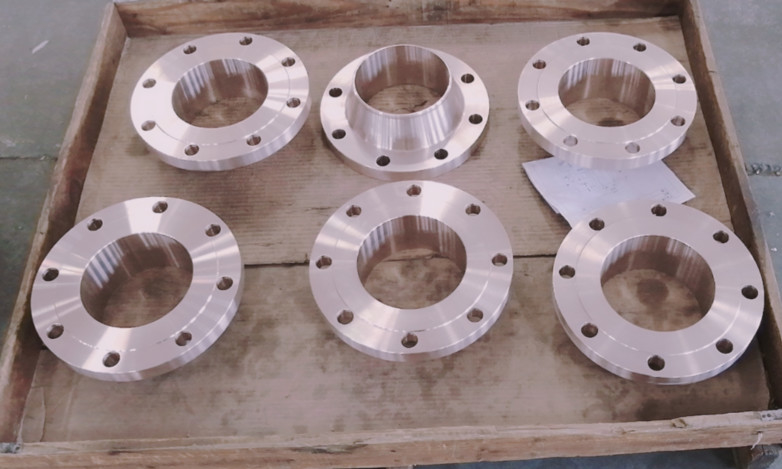

Nickel Alloy Steel Flange Welding Neck 300# 6" B564 N08800 ASME B16.5
Weld Neck Flanges are a very common type of pipe flanges used in various industrial applications. They have a long tapered hub and are often used for high pressure applications.
We are a fast growing organization, engaged in manufacturing, supply and export of welding neck flanges, industrial weld neck flanges and forged flanges. Our weld neck flanges are drilled with the wall thickness of flange having the same dimensions of pipe. Flanges for heavier pipes have smaller bore, while flanges of lighter pipes have larger bore. These weld neck flanges, industrial weld neck flanges, forged flanges are normally used for high-pressure, cold or hot temperature.
Flange is also called Flange or Flange plate.A flange is a part that connects a pipe to a pipe and is attached to the end of the pipe.Flange connection or flange joint refers to the detachable connection which is connected by flange, gasket and bolt as a group of assembled sealing structure. Pipe flange refers to the flange with pipe in the pipeline device, and refers to the import and export flange of the equipment when used in the equipment.There are holes in the flange and bolts hold the two flanges together.Gasket seals between flanges.Flanges threaded connection (threaded connection) flanges and welded flanges and clip flanges.Flange material
According to the production of material can be divided into: WCB (carbon steel), LCB (low temperature carbon steel), LC3 (3.5% nickel steel), WC5 (1.25% 0.5% chrome molybdenum steel), WC9 chromium (2.25%), C5 (% 5% chromium molybdenum), C12 (9% 1% chromium molybdenum), CA6NM (4 (12% chromium steel), CA15 (4) (12% chromium), CF8M(316 stainless steel), CF8C(347 stainless steel), CF8(304 stainless steel), CF3(304L stainless steel), CF3M(316L stainless steel), CN7M(alloy steel), M35-1(Monel), N7M(Hastert nickel alloy B), CW6M(Hastert nickel alloy C), CY40(because ofNickel alloy)
| Test | Chemical Component Analysis, Mechanical Properties, Metallurgical Analysis, Impact Testing, Hardness testing , Ferrite Testing, Intergranular corrosion testing, X-ray Inspection (RT), PMI, PT, UT, HIC & SSC test, etc. or as your requirement |
| Brand | TOBO |
| Certificates | API, ISO, SGS, BV, CE, PED, KOC, CCRC, PDO, CH2M HILL and etc. |
| Advantages | 1. Abundant stock and prompt delivery 2. Reasonable for whole packages and processes. 3. 15 years' QC team service & sales management API& ASTM trained engineers. 4. More than 150 customers spread worldwide. |
| MOQ | 1pcs |
| Delivery time | 10-100 days depending on quantity |
| Payment terms | T/T or Western Union or LC |
| Shipment | FCA Tianjin/Shanghai, CFR, CIF, etc |
| Application | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
| Remarks | Other materials and drawings are available. |
