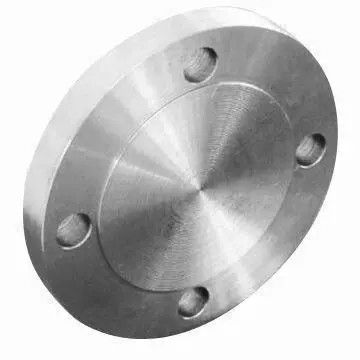

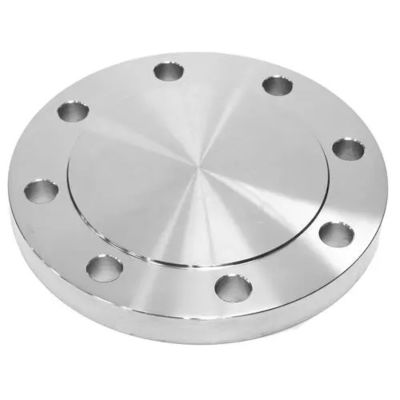

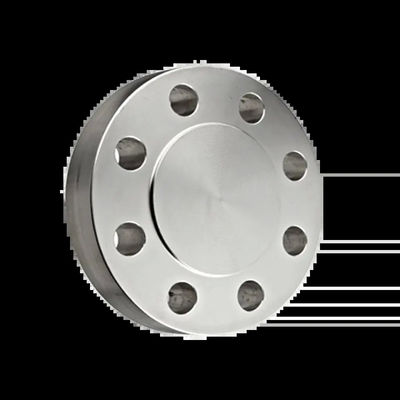

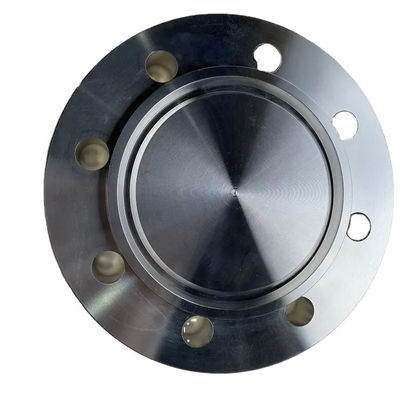

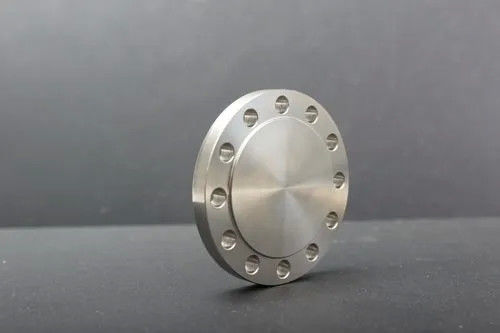

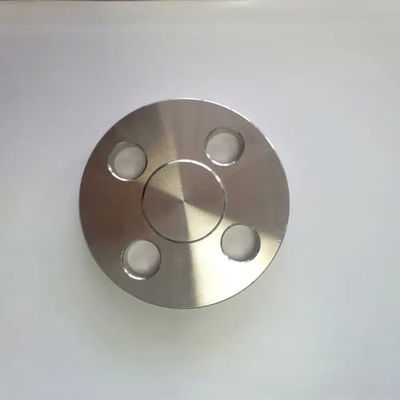

ANSI B16.5 TH Flange Alloy Steel Pipe Fittings 600# Pressure Epoxy Coating
Product Description
These Threaded (TH) flanges are made of high-quality alloy steel, manufactured in strict accordance with ANSI B16.5 standard, with a pressure rating of 600#. They are treated with epoxy coating for excellent anti-corrosion and anti-rust performance. Designed for threaded connection, these flanges feature high strength, good pressure resistance, easy installation and reliable sealing. Widely used in industrial piping systems, water treatment, oil & gas, petrochemical and general pipeline applications.
Key Parameters
- Material: Alloy Steel
- Standard: ANSI B16.5
- Type: Threaded Flange (TH)
- Pressure Class: 600#
- Surface: Epoxy Coating
- Connection: Threaded
- Features: High strength, corrosion resistant, epoxy coated, threaded, pressure resistant
- Application: Industrial piping, water treatment, oil & gas, petrochemical, general pipeline
Application
Widely applied in industrial pipelines, water supply and drainage systems, oil and gas facilities, petrochemical plants, and mechanical piping. Suitable for threaded connection of pipes, valves and equipment, especially in environments requiring anti-corrosion protection.
Product Advantages
- Comply with ANSI B16.5 standard, stable dimensions and good interchangeability.
- Alloy steel material provides high strength and excellent 600# pressure bearing capacity.
- Epoxy coating offers long-term anti-corrosion and anti-rust protection, extending service life.
- Threaded (TH) design allows quick and convenient installation without welding.
- Forged structure ensures compactness, high density and stable mechanical properties.
- Good sealing performance, effectively preventing medium leakage.
Installation & Use
Check flange thread and surface before installation; clean the thread parts; apply thread sealant if needed; tighten the flange and pipe properly; ensure firm connection and no leakage.
Packing
Plastic caps, anti-rust film, foam and wooden case, suitable for long-distance ocean transportation.
Quick Details
| Size: |
2 inch |
Material: |
CuNi 90/10 |
Standard: |
ANSI B16.5 |
| Place of Origin: |
Shanghai, China (Mainland) |
Model Number: |
DN20-500 |
Brand Name: |
TOBO |
| Standard or Nonstandard: |
Standard |
material: |
CuNI 90/10 |
Type: |
Reducing flange |
Packaging & Delivery
| Packaging Details: |
In wooden case, pallet or as customers' requirement |
| Delivery Detail: |
14-30 days |
Product Description
| flangeType |
Stainless Steel Flanges ASTM A 182, GR F1, F11, F22, F5, F9, F9 WN SO BL JIN ECT |
| Standard |
ASME/ANSI B16.5 |
| Size |
1/2’’~60’’ |
| Pressure Rate |
150lb to 2500lb |
| Manufacturing process |
Push, Press, Forge, Cast, etc. |
| Material |
stainless steel |
| Carbon steel |
ASTM A 105 |
|
Allloy steel flange
|
ASTM A182 F5; F11;F22;F91;F51
ASTM A350 LF1; LF2; A350 LF3 ;LF4;LF6;LF8
|
|
Stainless Steel flange
|
ASTM A182 F304/304H/304L
ASTM A182 F316/316H/316L
ASTM A182 F321/321H
ASTM A182 F347/347H
|
|
Nickel Alloys Flanges
|
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276 |
|
Copper Alloys Flange
|
Copper, Brass & Gunmetal |
| Manufacture Standard |
ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
B.S : BS4504 , BS4504, BS1560, BS10 |
| Package |
Wooden cases, pallets, nylon bags or according to the customers' requirements |
| MOQ |
1pcs |
| Delivery time |
10-100 days depending on quantity |
| Payment terms |
T/T or Western Union or LC |
| Shipment |
FCA Tianjin/Shanghai, CFR, CIF, etc |
| Application |
Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
| Remarks |
Other materials and drawings are available. |

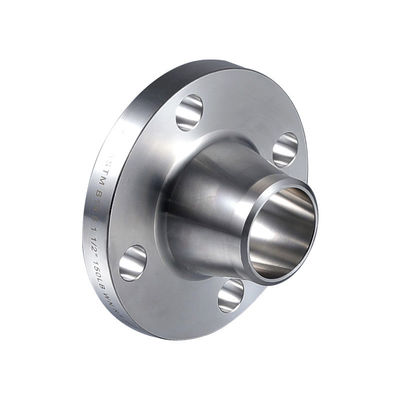

Product Range:
WNRF Flanges Size : 1/8" NB TO 48"NB.
WNRF Flanges Class : 150#, 300#,400 #,600#,900#, 1500# & 2500 #.
Stainless Steel WNRF Flanges: ASTM A 182, A 240
Grade : F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L,
Duplex stainless steel UNS S31803, 2205, Super Duplex stainless steel UNS S32750
Carbon Steel WNRF Flanges: ASTM A 105, ASTM A 181
Alloy Steel WNRF Flanges : ASTM A 182, GR F1, F11, F22, F5, F9, F91
Nickel Alloys WNRF Flanges : Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Copper Alloys WNRF Flanges: Copper, Brass & Gunmetal
WNRF Flanges Standard
ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629,
DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
B.S : BS4504 , BS4504, BS1560, BS10
Value Added Services
Hot Dip Galvanizing , Epoxy Coating.
Test Certificate
Manufacturer Test Certificate as per EN 10204 / 3.1B

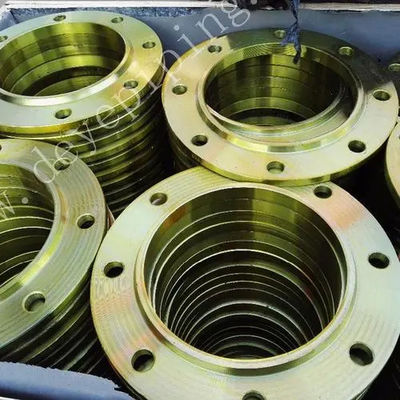

Product Show
Why choose us
1. If the quantity of order is not very big,we could send them to you by express delivery,
such as TNT,DHL,UPS OR EMS etc.
2. If order is big ,we will advise you use Air Shipping or Sea Shipping through your nominated forwarder agent.
Our long-term cooperated agent also available.
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer ,You can see the certification.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
