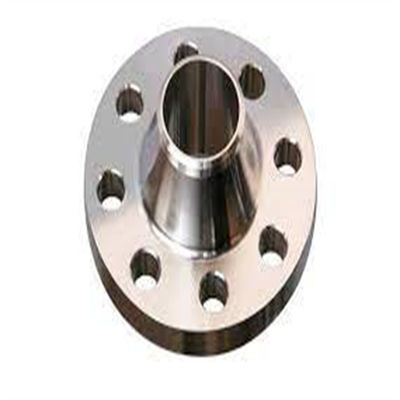

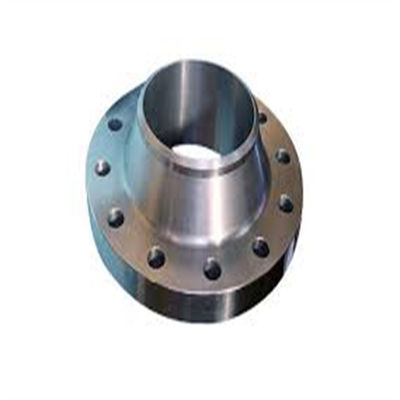

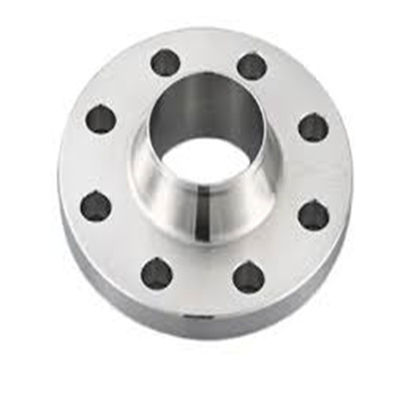

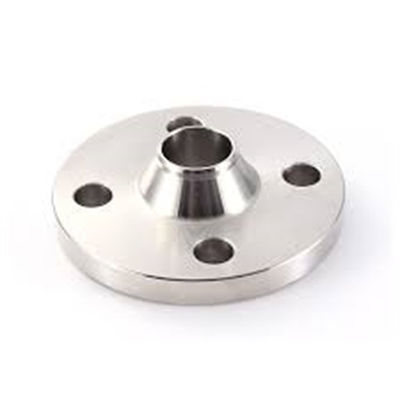

TOBO Socket Weld Flange ASME B16.5 DN80 Class 150 – Excellent Leak Resistance & High Sealing Performance
1. Product Description
A Socket Weld Flange is a type of pipe flange where the pipe is inserted into a recessed area (the socket) of the flange and then connected by fillet welds around its exterior . These flanges are available in both with neck and without neck variants, with the necked version offering greater rigidity and better sealing performance, making it suitable for higher pressure applications . They are typically manufactured through processes like professional integral forging and forging .
2. Key Product Parameters
The table below summarizes the essential technical specifications for Socket Weld Flanges:
Parameter Details
Sealing Face Types Raised Face (RF), Male-Female (MFM), Tongue-Groove (TG), Ring Joint (RJ) .
Common Materials Carbon Steel (A105, 20#, Q235, 16Mn), Stainless Steel (304, 304L, 316, 316L), Alloy Steel (ASTM A182 F1, F5a, F9, F11, etc.) .
Manufacturing Standards ANSI B16.5, HG20619-1997, GB/T9117.1-2000 — GB/T9117.4-200 .
Pressure Ratings (Class) Class 150, Class 300, Class 600, Class 900, Class 1500, Class 2500 .
Typical Application Range Commonly used in pipelines with PN ≤ 10.0MPa and DN ≤ 40 .
3. Product Applications
Socket Weld Flanges are widely used in various industries for pipeline connections where high sealing integrity is required . Typical application industries include:
Boiler and Pressure Vessel
Oil and Gas
Chemical and Pharmaceutical
Shipbuilding
Metallurgy and Machinery
Food Industry
